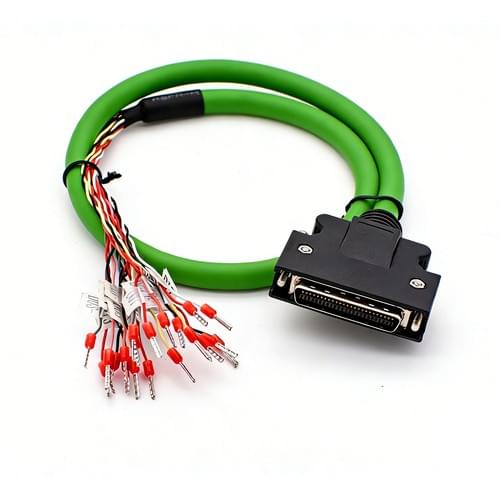

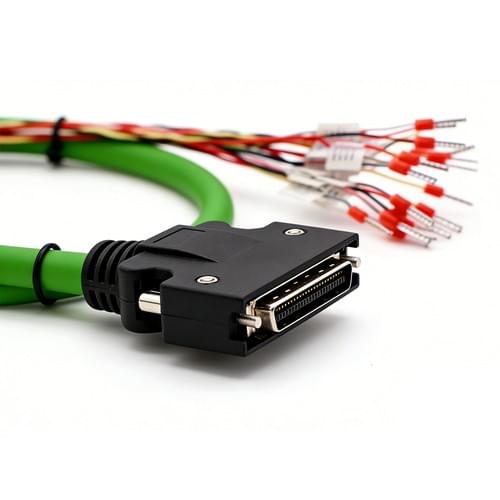

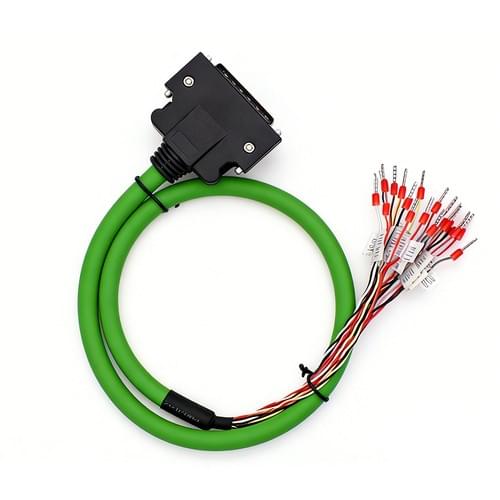

SCSI 50-Pin Male to Pre-Crimped Pin Terminal Industrial Control Cable
Detailed Parameters
Connector Type: 50-pin SCSI male connector (metal shielded housing) to pre-crimped red-insulated pin terminals (for terminal block connection)
Wire Configuration: Twisted-pair multi-core signal cable (color-coded conductors with individual labeling)
Wire Gauge: 24–26 AWG tinned copper stranded wire
Insulation Material: PVC insulation for individual conductors; green thick polyurethane (PU) outer jacket (oil-resistant, flexible)
Shielding: Overall braided shielding for anti-electromagnetic interference (EMI/EMC protection)
Cable Length: Customizable (standard options: 0.5m / 1.0m / 2.0m / 3.0m)
Voltage Rating: 300V
Current Rating: Up to 1A per conductor
Connector Material: Zinc alloy metal shell, gold-plated pins for corrosion resistance and stable signal transmission

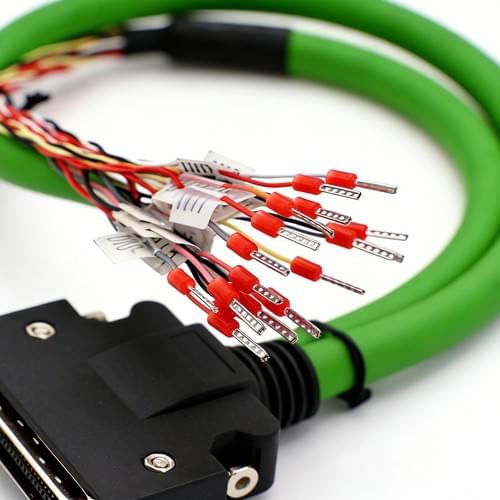

Terminals: Tin-plated copper pin terminals with red insulating sleeves, pre-labeled for easy identification
Connector Type: 50-pin SCSI male connector (metal shielded housing) to pre-crimped red-insulated pin terminals (for terminal block connection)
Wire Configuration: Twisted-pair multi-core signal cable (color-coded conductors with individual labeling)
Wire Gauge: 24–26 AWG tinned copper stranded wire
Insulation Material: PVC insulation for individual conductors; green thick polyurethane (PU) outer jacket (oil-resistant, flexible)
Shielding: Overall braided shielding for anti-electromagnetic interference (EMI/EMC protection)
Cable Length: Customizable (standard options: 0.5m / 1.0m / 2.0m / 3.0m)
Voltage Rating: 300V
Current Rating: Up to 1A per conductor
Connector Material: Zinc alloy metal shell, gold-plated pins for corrosion resistance and stable signal transmission
Terminals: Tin-plated copper pin terminals with red insulating sleeves, pre-labeled for easy identification
More Details
Key Features
- High-Density Signal Connection: 50-pin SCSI connector provides a compact, high-density interface for multi-channel signal transmission.
- Pre-Labeled Terminals: Each conductor is pre-crimped to a pin terminal and labeled, drastically reducing wiring time and minimizing connection errors.
- Robust Industrial Jacket: Green PU outer jacket offers excellent flexibility, oil resistance, and abrasion resistance, ideal for factory floor environments.
- Superior Shielding: Full braided shielding effectively blocks electromagnetic interference, ensuring clean signal transmission in high-noise industrial settings.
- Secure Locking: SCSI connector features locking screws to maintain a stable connection under vibration or mechanical stress.
Application Scope
- Industrial Automation: Connects PLCs, CNC controllers, and I/O modules to sensor/actuator arrays in factory automation lines.
- Motion Control Systems: Used in servo and stepper motor control setups for high-precision signal transmission.
- Test & Measurement: Deployed in data acquisition systems, oscilloscopes, and industrial test benches for multi-channel signal routing.
- Robotics: Integrated into robotic arms and automated guided vehicles (AGVs) for reliable control signal communication.
- Machine Tools: Applied in machining centers, lathes, and printing presses to link control units to peripheral equipment.
