As industrial automation evolves toward higher precision and speed, servo systems impose stringent requirements on the stability and real-time performance of encoder signal transmission. In high-density wiring scenarios, traditional harnesses have become a critical bottleneck restricting system performance due to insufficient anti-interference capability and severe signal attenuation. Based on the innovative practices of Shenzhen Shenyangming Electronics Co., Ltd. in the field of servo encoding harnesses, this paper systematically discusses how customized design achieves lossless transmission of high-frequency signals through material optimization, structural innovation and electromagnetic compatibility technology.
I. Signal Transmission Challenges in High-Density Scenarios
In typical applications such as photovoltaic glass production lines and new energy vehicle battery management, the distance between servo encoders and drivers exceeds 50 meters, with signal frequencies above 2 MHz. Such scenarios face three core challenges:
- Degraded Signal Integrity: Long-distance transmission causes impedance mismatch, triggering reflected waves and standing waves, resulting in encoder pulse counting errors.
- Increased Electromagnetic Interference (EMI): When power cables and encoding cables are laid in parallel, 400 Hz harmonics from power cables interfere with encoding signals via capacitive coupling, leading to distorted position feedback.
- Physical Reliability Risks: In floor conduit wiring, harnesses must withstand mechanical vibration and temperature fluctuations. Traditional PVC sheaths tend to embrittle and crack at -20°C.
Taking a photovoltaic enterprise production line as an example, after adopting standard RVVP shielded cables, the encoder signal bit error rate reached 0.3%, causing a glass cutting accuracy deviation of more than 1 mm. Through customized design, Shenyangming Electronics reduced the bit error rate to below 0.02%, verifying the technical necessity of the customized solution.
Taking a photovoltaic enterprise production line as an example, after adopting standard RVVP shielded cables, the encoder signal bit error rate reached 0.3%, causing a glass cutting accuracy deviation of more than 1 mm. Through customized design, Shenyangming Electronics reduced the bit error rate to below 0.02%, verifying the technical necessity of the customized solution.
II. Four Technical Breakthroughs in Customized Design
1. Conductor Material and Structural Optimization
Shenyangming adopts tinned oxygen-free copper (OFC) as the conductor material, whose conductivity is 8% higher than that of ordinary copper, with a resistivity reduced to 0.017 Ω·mm²/m. Through stranding design, the single conductor diameter is controlled at 0.08 mm, stabilizing the DC resistance of a 100-meter harness within 12 Ω.
In a new energy vehicle BMS system, Shenyangming customized a 0.5 mm² 7-core stranding structure for encoder cables, paired with a 0.2 mm thick aluminum foil shielding layer, achieving signal attenuation < 0.5 dB at a 40-meter transmission distance — a 3-fold improvement over traditional solutions.
2. Dynamic Shielding Technology
For high-frequency interference scenarios, Shenyangming has developed a double-layer shielding structure: an inner layer of tinned copper braided shielding (coverage rate ≥ 85%) and an outer layer of aluminum foil composite tape (attenuation ≥ 60 dB). By optimizing the shielding layer spacing through simulation, the interference rejection ratio (SIR) in the 1 MHz–10 MHz frequency band exceeds 40 dB.
In an industrial robot joint drive system, this technology reduced the encoder signal jitter error from ±0.1° to ±0.02° under a strong electromagnetic field (field strength 5 V/m), meeting the requirements of six-axis linkage control.
3. Environmentally Adaptive Design
Shenyangming provides differentiated sheath solutions according to application scenarios:
- PUR Sheath: Oil resistance reaches IRM902, maintaining flexibility at -40°C to 105°C, suitable for outdoor scenarios such as rail tram charging equipment.
- PTFE Sheath: Temperature resistance extended to -65°C to 260°C, meeting extreme environmental requirements in aerospace.
- Flame-Retardant PE Sheath: UL94 V-0 certified, with combustion droplet temperature < 800°C, ensuring safety in enclosed spaces such as data centers.
After adopting Shenyangming’s customized PUR-sheathed encoding cables, a photovoltaic glass production line extended harness service life from 3 years to 8 years and reduced maintenance costs by 60%.
4. Modular Interface System

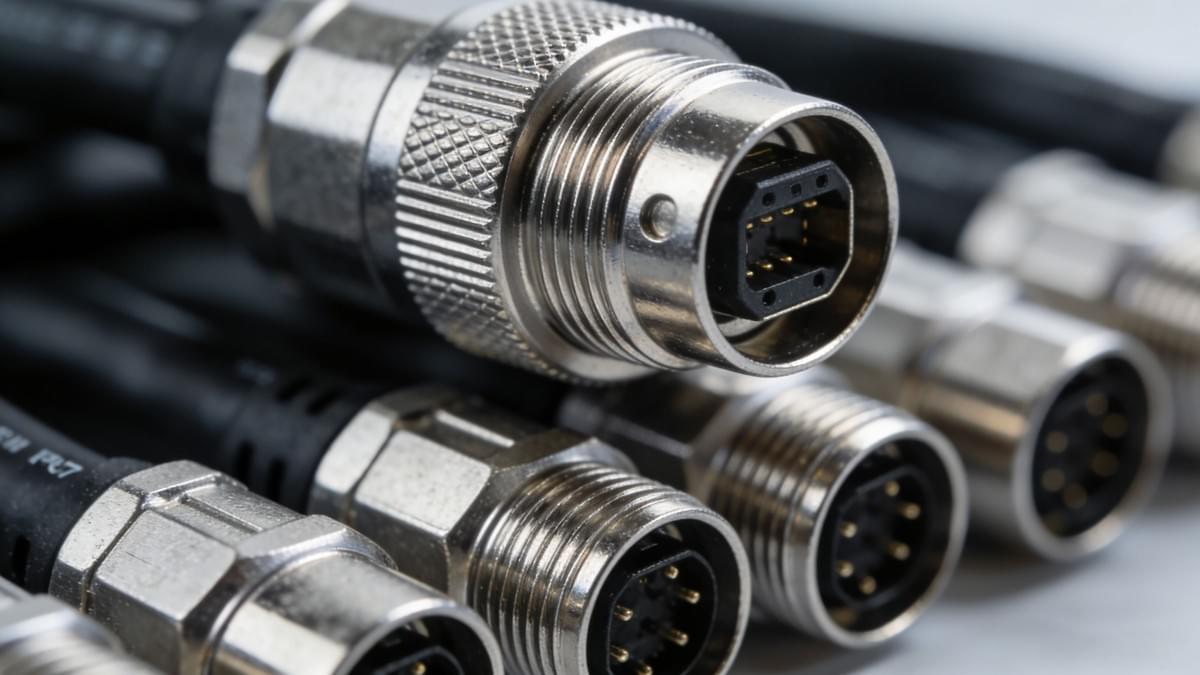

Shenyangming has developed metal connectors with IP67 protection. Through O-ring sealing and threaded locking design, they operate continuously for 72 hours without leakage at a water depth of 1 meter. For high-frequency signal transmission, gold-plated contacts (contact resistance < 1 mΩ) are used, together with anti-misalignment keying structures, achieving a plug life of more than 500 cycles.
In semiconductor equipment, this interface system reduced encoder harness installation time from 2 hours to 20 minutes and cut system downtime risk by 85%.
Full-Process Customized Service
Shenyangming has built a closed-loop system: Demand Analysis → Simulation Design → Rapid Prototyping → Mass Production.
- Demand Analysis: Identify interference sources and transmission bottlenecks through on-site investigation and signal testing.
- Simulation Design: Optimize harness impedance matching and shielding parameters using HFSS electromagnetic simulation software.
- Rapid Prototyping: Provide samples within 72 hours to support customers’ actual working condition testing.
- Mass Production: Adopt fully automatic crimping machines and laser welding equipment to ensure product consistency.
In a medical equipment project, Shenyangming shortened the development cycle from 6 months to 8 weeks through this system, helping customers seize the market ahead of schedule.
