In industrial automation and motion control, reliable signal transmission is everything. This green-cased, high-density connector cable is a workhorse for connecting servo drives, PLCs, and industrial controllers. Let’s break down its design, applications, and why it’s a critical component in modern manufacturing.
1. What Is This Cable?

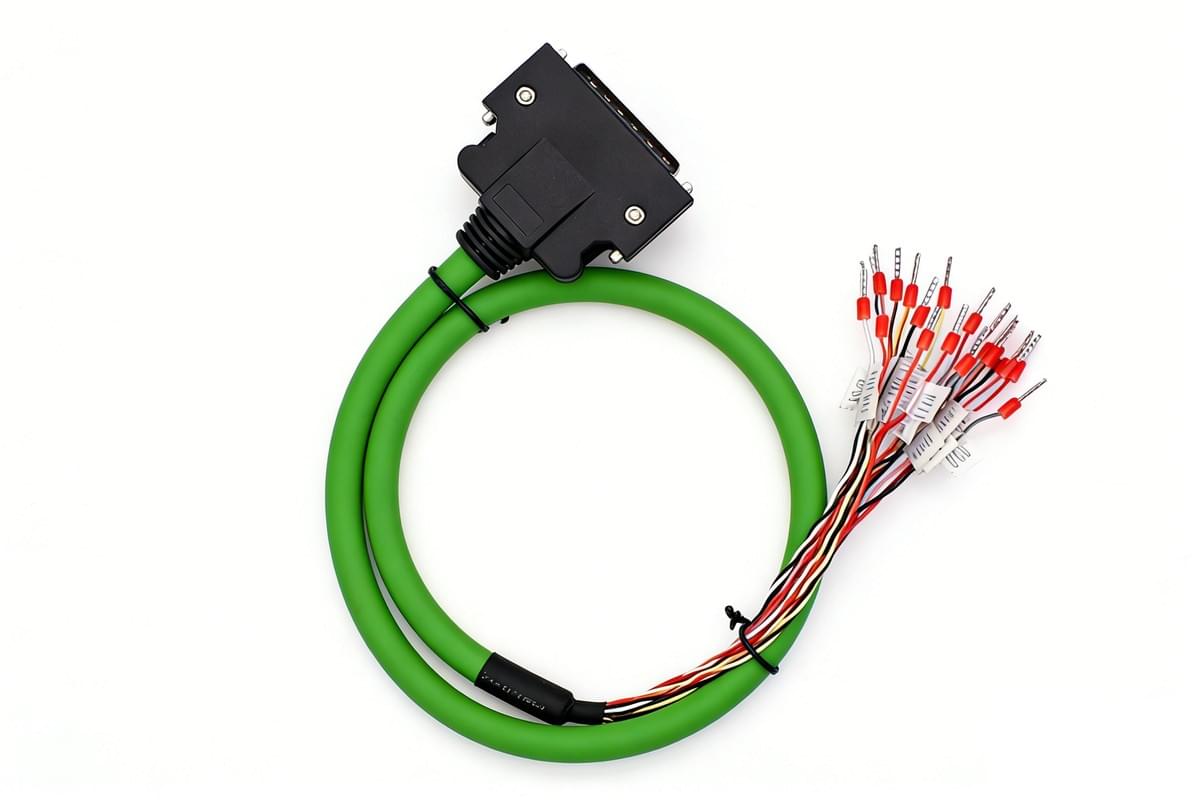

This is a high-density I/O control cable (often compatible with SCSI/MDR/SCSI-2 connectors), designed for industrial signal transmission.

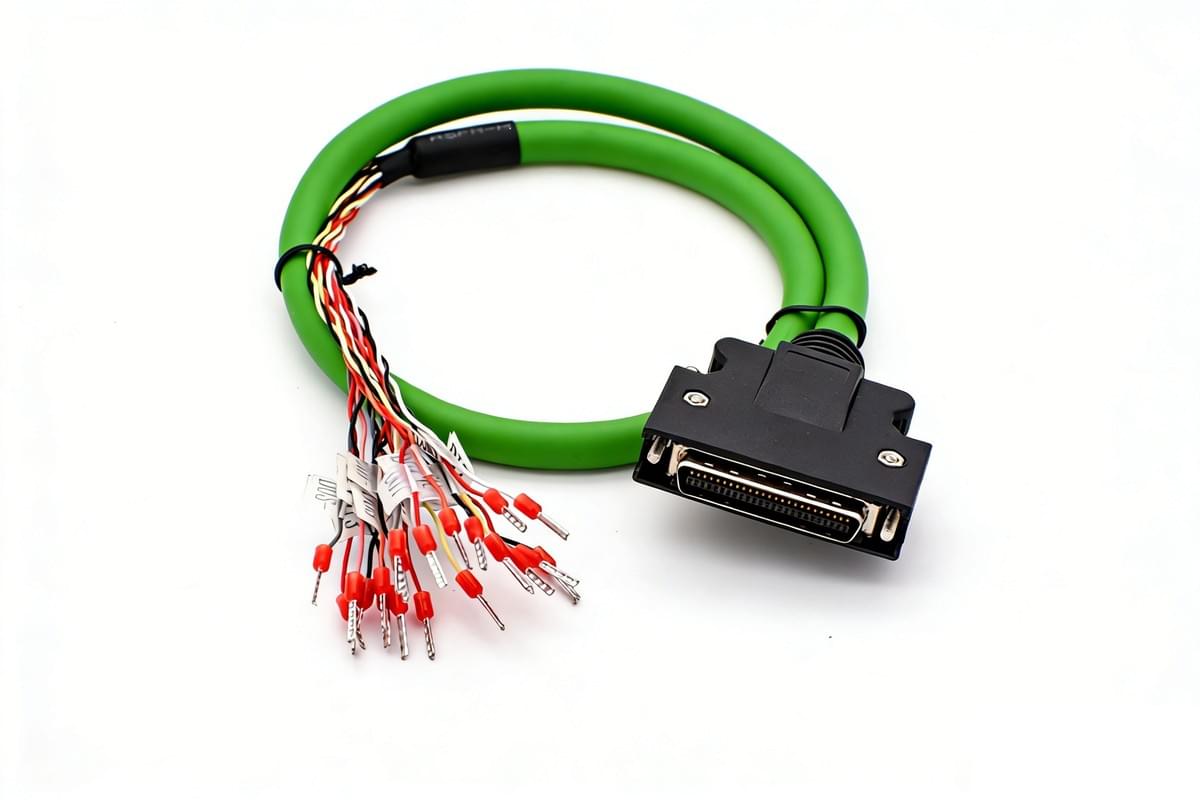

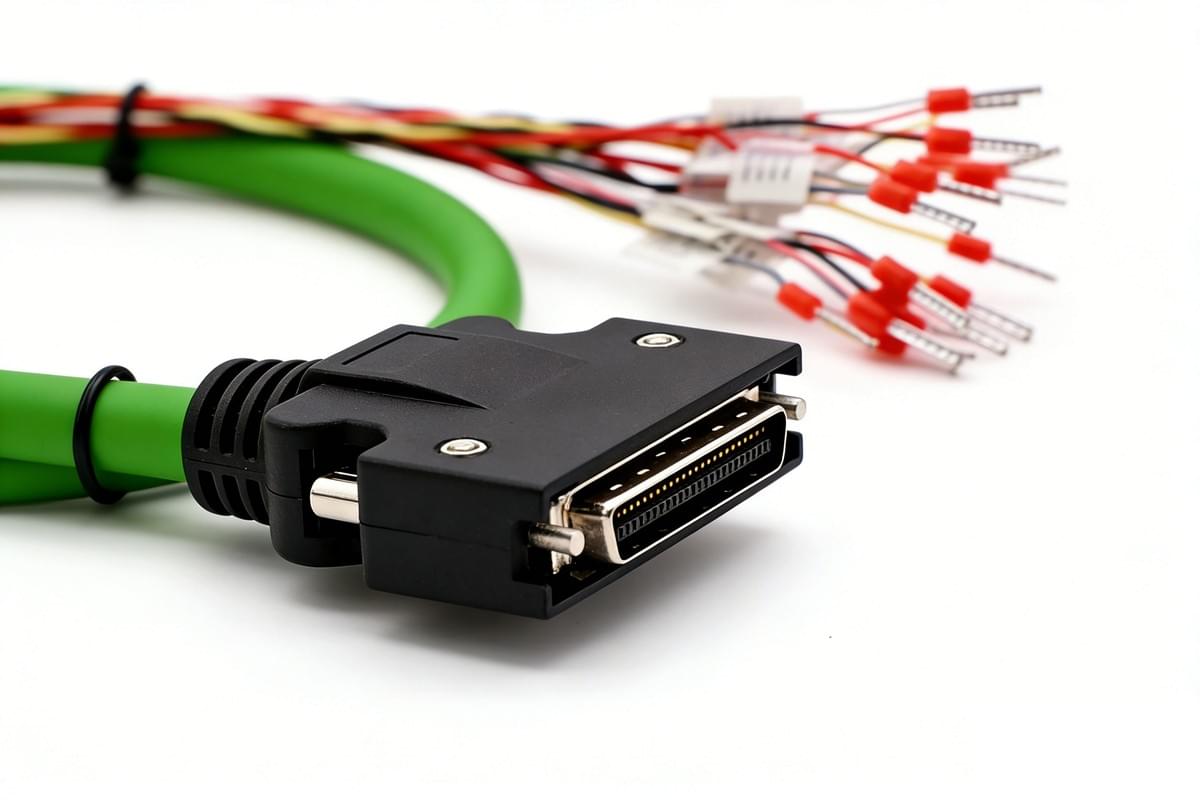

- Connector: 50-pin high-density male connector (screw-locked for vibration resistance), ideal for compact control panels.
- Cable Jacket: Green, thick, and flexible PUR/TPE jacket, resistant to oil, abrasion, and electromagnetic interference (EMI).

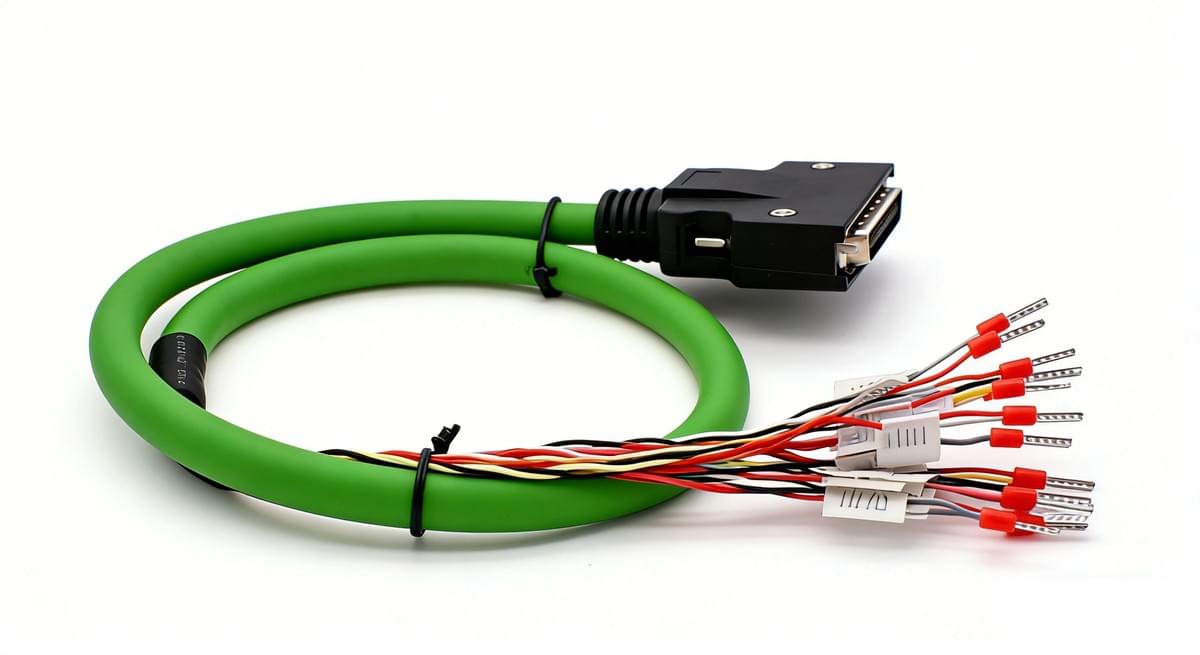

- Wiring: Pre-terminated individual wires with crimped pin terminals and labeled tags, making it easy to connect to terminal blocks or PLC I/O points.
2. Key Features & Benefits
- Shielded Design: The overall braided shield protects against industrial noise, ensuring stable data and signal transmission.
- Vibration Resistance: Screw-lock connectors prevent accidental disconnection in high-vibration environments (e.g., robotics, assembly lines).
- Pre-labeled Wires: Each wire is tagged with a pin number, drastically reducing installation time and wiring errors.
- Durable Jacket: Suitable for drag chain or fixed installation, with a long service life in harsh factory conditions.
3. Common Applications
This cable is widely used in:
- Servo Motor Control: Connecting servo amplifiers to motion controllers for position and speed signals.
- PLC I/O Modules: Extending digital/analog I/O signals from PLCs to field devices.
- Robotics: Providing control signals to robotic arms and end-effectors.
- CNC Machines: Linking CNC controllers to spindle drives and I/O boards.
4. Why Choose This Type of Cable?
Compared to loose wires or generic connectors:
- Space Efficiency: High-density pin count reduces panel clutter.
- Reliability: Shielding and locking mechanisms minimize downtime from signal loss or disconnection.
- Cost-Effectiveness: Pre-terminated and labeled design cuts labor costs during installation and maintenance.
Conclusion
Whether you’re upgrading an automation line or building a new control system, this high-density control cable is a foundational component for reliable, efficient signal transmission. Its robust design and ease of use make it a top choice for engineers and technicians in industrial automation.
