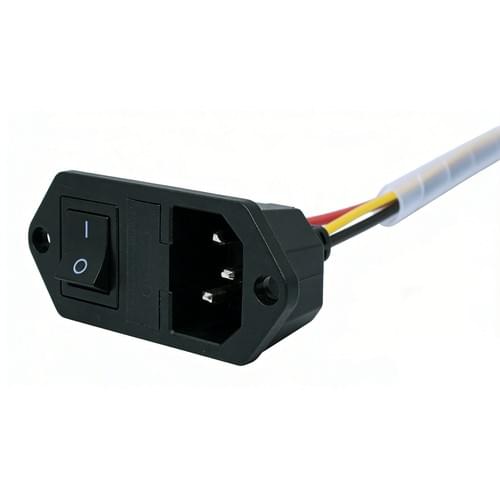

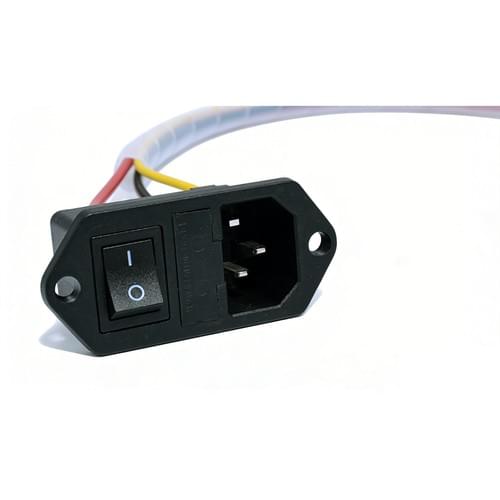

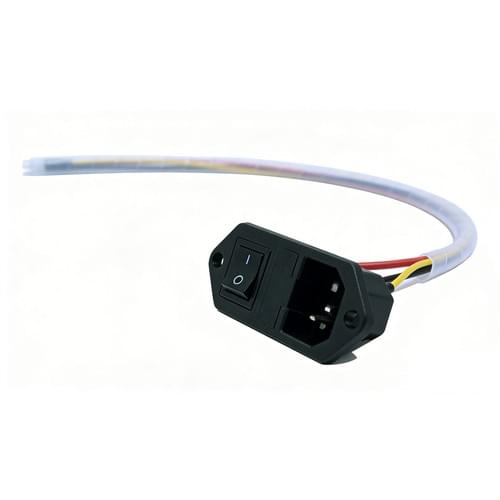

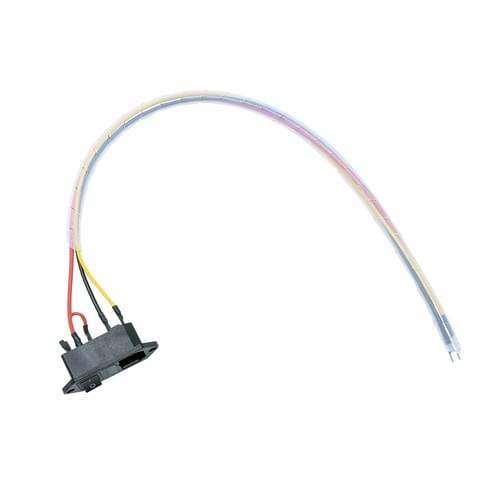

IEC C14 Inlet with Rocker Switch & Pre-wired Harness
Detailed Parameters
Connector Type: IEC 60320 C14 male inlet + integrated SPST rocker switch (ON/OFF)
Wire Configuration: 3-conductor pre-wired harness (color-coded: L=red, N=yellow, PE=black)
Wire Gauge: 18 AWG tinned copper stranded wire (customizable: 20/16 AWG)
Insulation Material: PVC insulation (temperature rating: 105°C)
Cable Management: Clear spiral wrap for wire protection and tidy routing
Voltage Rating: 250V AC (IEC standard)
Current Rating: 10A (switch & inlet combined)
Switch Type: SPST (Single Pole Single Throw) rocker switch, rated 250V/10A
Mounting Style: Panel-mount with 2 screw holes (suitable for 1U/2U chassis, equipment enclosures)
Housing Material: Flame-retardant plastic (UL94 V-0 rated)
Cable Length: Customizable (standard options: 15cm / 20cm / 30cm)
Connector Type: IEC 60320 C14 male inlet + integrated SPST rocker switch (ON/OFF)
Wire Configuration: 3-conductor pre-wired harness (color-coded: L=red, N=yellow, PE=black)
Wire Gauge: 18 AWG tinned copper stranded wire (customizable: 20/16 AWG)
Insulation Material: PVC insulation (temperature rating: 105°C)
Cable Management: Clear spiral wrap for wire protection and tidy routing
Voltage Rating: 250V AC (IEC standard)
Current Rating: 10A (switch & inlet combined)
Switch Type: SPST (Single Pole Single Throw) rocker switch, rated 250V/10A
Mounting Style: Panel-mount with 2 screw holes (suitable for 1U/2U chassis, equipment enclosures)
Housing Material: Flame-retardant plastic (UL94 V-0 rated)
Cable Length: Customizable (standard options: 15cm / 20cm / 30cm)
More Details
Key Features
- All-in-One Design: Combines IEC C14 power inlet, ON/OFF rocker switch, and pre-wired harness in a single compact module, reducing assembly time.
- Pre-wired Convenience: Pre-terminated wires with stripped ends allow direct soldering or connection to terminal blocks, eliminating on-site wiring errors.
- Cable Protection: Clear spiral wrap safeguards wires from abrasion, tangling, and mechanical stress, ideal for tight enclosures.
- Safety Compliance: Flame-retardant housing and rated switch/inlet ensure safe operation in industrial and consumer electronics environments.
- Space-Saving: Low-profile panel-mount design fits seamlessly into compact equipment, minimizing front/back panel footprint.
Application Scope
- Consumer Electronics: Integrated into desktop computers, monitors, printers, and audio/video equipment for power input and control.
- Industrial Equipment: Used in test instruments, control boxes, and small industrial machinery to provide safe, switchable AC power.
- Medical & Lab Devices: Applied in medical instruments and laboratory equipment where reliable power isolation and easy shutdown are required.
- DIY Electronics & Prototyping: Perfect for custom power supplies, 3D printers, and hobbyist projects needing a compact, pre-assembled power entry solution.
- Networking & Telecom: Deployed in network switches, routers, and small server enclosures to manage power input efficiently.
