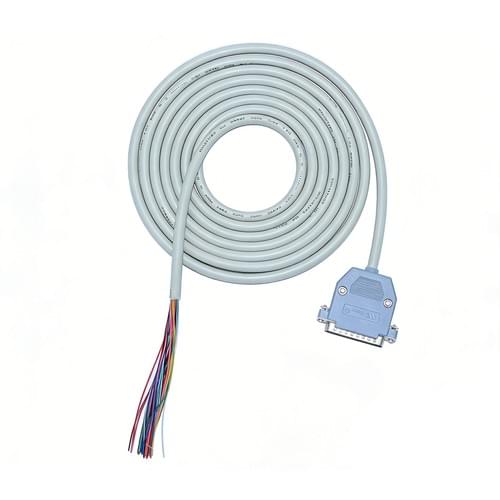

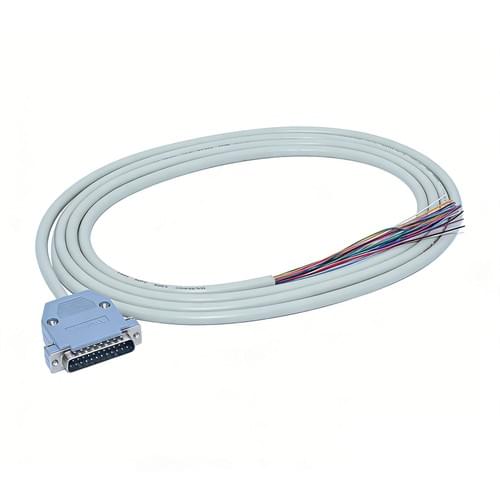

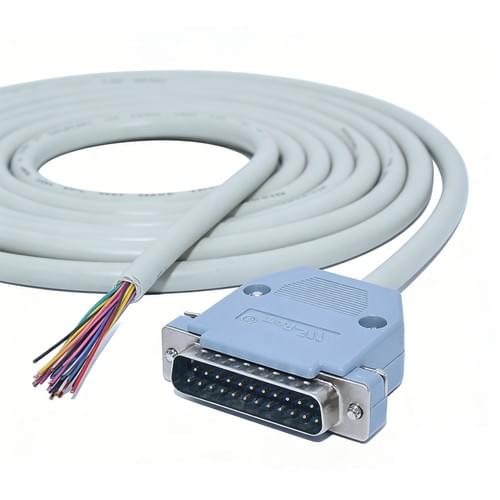

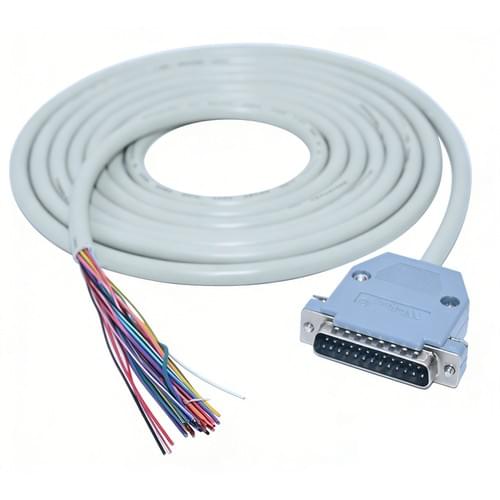

DB25 Male to Open-Ended Industrial Control Cable
Detailed Parameters
Connector Type: DB25 male (25-pin D-subminiature) to open wire ends
Wire Count: 25 conductors (color-coded for easy identification)
Wire Gauge: 24 AWG tinned copper conductor (customizable options: 22/26 AWG)
Insulation Material: PE/PVC insulation (flame retardant, temperature rating: 70°C–105°C)
Outer Jacket: Gray PVC jacket (oil-resistant, wear-resistant, UV-resistant optional)
Voltage Rating: 300V
Current Rating: Up to 3A per conductor
Cable Length: Customizable (standard options: 1m / 2m / 3m / 5m)
Connector Material: Zinc alloy shell with screw locks, gold-plated pins for corrosion resistance and stable signal transmission
Shielding: Optional overall aluminum foil/braided shielding for anti-interference in industrial environments
Connector Type: DB25 male (25-pin D-subminiature) to open wire ends
Wire Count: 25 conductors (color-coded for easy identification)
Wire Gauge: 24 AWG tinned copper conductor (customizable options: 22/26 AWG)
Insulation Material: PE/PVC insulation (flame retardant, temperature rating: 70°C–105°C)
Outer Jacket: Gray PVC jacket (oil-resistant, wear-resistant, UV-resistant optional)
Voltage Rating: 300V
Current Rating: Up to 3A per conductor
Cable Length: Customizable (standard options: 1m / 2m / 3m / 5m)
Connector Material: Zinc alloy shell with screw locks, gold-plated pins for corrosion resistance and stable signal transmission
Shielding: Optional overall aluminum foil/braided shielding for anti-interference in industrial environments
More Details
Key Features
- Flexible Termination: Open wire ends allow custom wiring to terminal blocks, PLC I/O modules, or custom PCB interfaces.
- Rugged Industrial Design: Heavy-duty DB25 connector with locking screws ensures secure connections in high-vibration industrial settings.
- Color-Coded Conductors: Pre-colored wires simplify installation, troubleshooting, and custom pin mapping.
- Durable Jacket: Robust outer jacket resists oil, abrasion, and environmental stress, suitable for long-term use in factories and control cabinets.
- Signal Integrity: High-quality copper conductors and optional shielding minimize signal loss and electromagnetic interference (EMI).
Application Scope
- Industrial Automation: Connect PLCs, CNC machines, and industrial I/O modules to sensors, actuators, and control panels.
- Instrumentation & Test Equipment: Used in data acquisition systems, oscilloscopes, and measurement devices for analog/digital signal transmission.
- Telecom & Networking: Applied in serial communication devices (RS-232/RS-422/RS-485) and telecom patch panels.
- Robotics & Motion Control: Links robot controllers to servo drives, encoders, and peripheral equipment.
- Custom Electronics & Prototyping: Ideal for DIY projects, embedded systems, and custom control panels where flexible termination is required.
