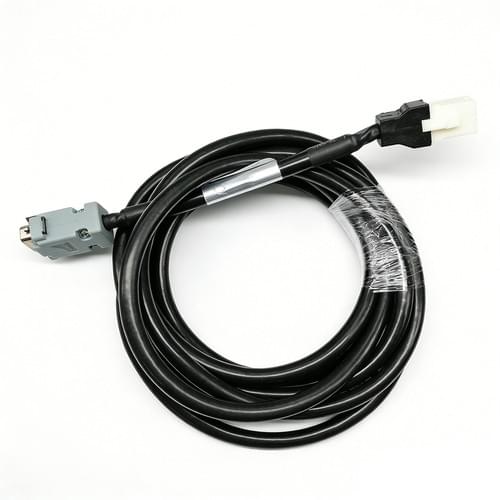

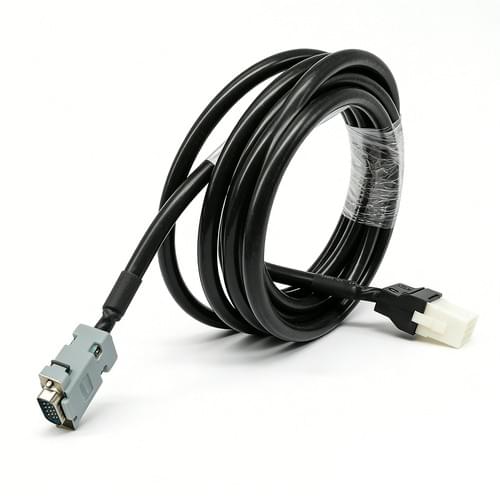

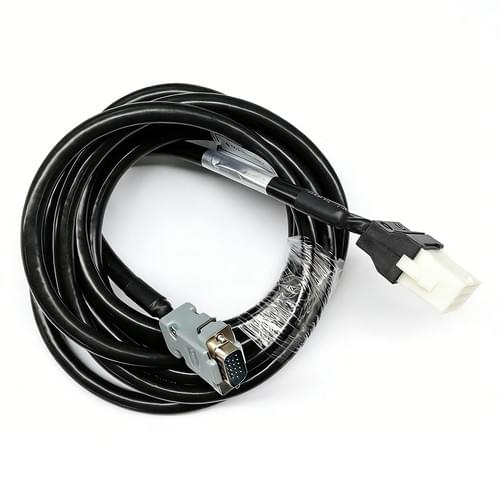

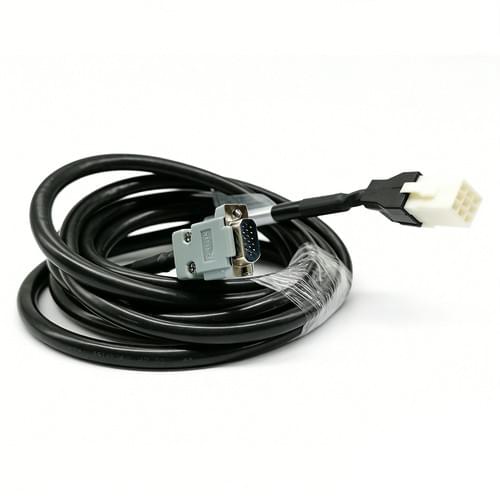

Custom Servo Motor Control Cable (HDB26 Male to Custom Power Connector)
Detailed Parameters
Connector Types:
Signal End: HDB26 (26-pin D-subminiature) male connector with metal shielded housing
Power End: Custom 4-pin white plastic power connector (for servo motor power input)
Wire Configuration:
Multi-core shielded cable (integrates signal and power conductors)
Twisted-pair signal wires for noise reduction
Wire Gauge:
Signal conductors: 24–26 AWG tinned copper
Power conductors: 16–20 AWG tinned copper (customizable)
Insulation & Jacket:
Insulation: Flame-retardant PVC (temperature rating: 105°C)
Outer Jacket: Black thick PVC jacket (oil-resistant, wear-resistant)
Shielding: Overall braided shielding + individual signal pair shielding (anti-EMI/EMC)
Cable Length: Customizable (standard options: 3m / 5m / 10m)
Voltage Rating: 300V (signal) / 600V (power)
Current Rating: Up to 1A per signal conductor; Up to 15A per power conductor
Connector Material:
D-sub: Zinc alloy shell, gold-plated pins
Power connector: High-temperature plastic housing, tin-plated copper contacts
Connector Types:
Signal End: HDB26 (26-pin D-subminiature) male connector with metal shielded housing
Power End: Custom 4-pin white plastic power connector (for servo motor power input)
Wire Configuration:
Multi-core shielded cable (integrates signal and power conductors)
Twisted-pair signal wires for noise reduction
Wire Gauge:
Signal conductors: 24–26 AWG tinned copper
Power conductors: 16–20 AWG tinned copper (customizable)
Insulation & Jacket:
Insulation: Flame-retardant PVC (temperature rating: 105°C)
Outer Jacket: Black thick PVC jacket (oil-resistant, wear-resistant)
Shielding: Overall braided shielding + individual signal pair shielding (anti-EMI/EMC)
Cable Length: Customizable (standard options: 3m / 5m / 10m)
Voltage Rating: 300V (signal) / 600V (power)
Current Rating: Up to 1A per signal conductor; Up to 15A per power conductor
Connector Material:
D-sub: Zinc alloy shell, gold-plated pins
Power connector: High-temperature plastic housing, tin-plated copper contacts
More Details
Key Features
- Integrated Signal & Power Design: Combines servo control signals and motor power in one cable, reducing wiring complexity and installation space.
- Superior Anti-Interference: Dual-layer shielding effectively blocks electromagnetic interference (EMI), ensuring stable signal transmission in industrial environments.
- Durable Construction: Thick black PVC jacket resists oil, abrasion, and mechanical stress, suitable for long-term use in factory automation settings.
- Secure Connection: Locking latches on both connectors prevent accidental disconnection under vibration or movement.
- Customizable Design: Tailored to match specific servo motor models, with options for pinout, length, and connector types.
Application Scope
- Industrial Servo Systems: Connects servo drives to servo motors in CNC machines, robotic arms, and automated production lines.
- Motion Control Equipment: Used in packaging machinery, printing presses, and textile equipment for precise motion control signal and power delivery.
- Factory Automation: Deployed in assembly lines, material handling systems, and industrial robots where reliable servo communication is critical.
- Machine Tools: Applied in machining centers, lathes, and milling machines to link CNC controllers with servo motors.
- Robotics & Automation: Integrated into collaborative robots (cobots) and industrial robots for high-precision motion control.
