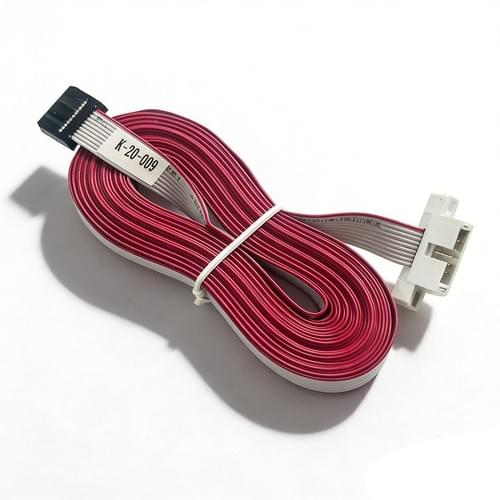

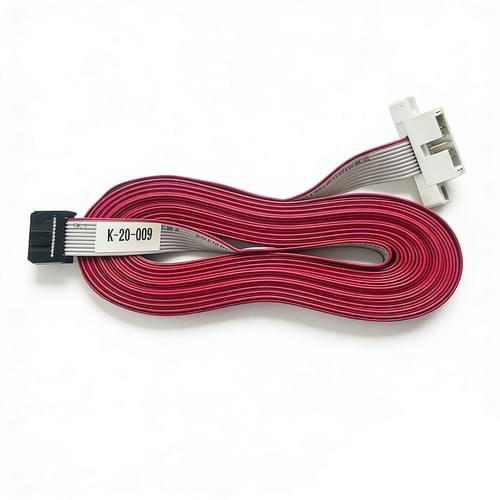

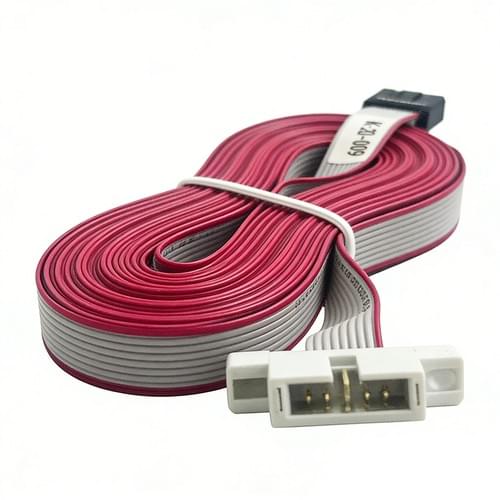

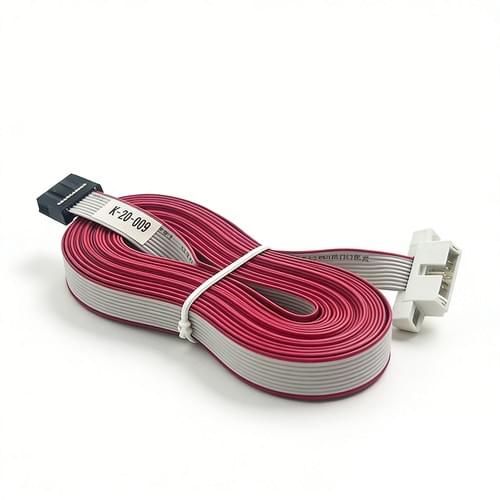

Custom 20-Pin Signal Flat Ribbon Cable Assembly (Model: K-20-009)
Detailed Parameters

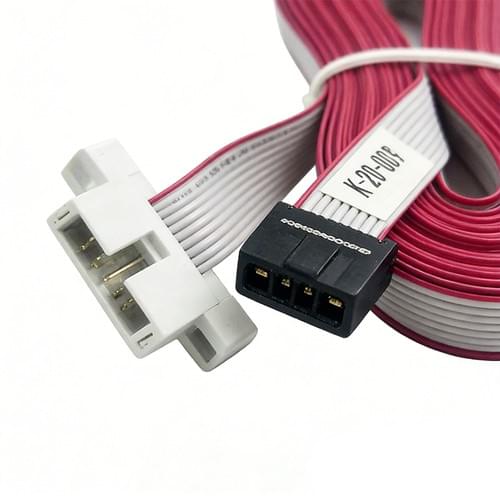

Connector Type: 20-pin IDC (Insulation Displacement Connector) male (black) to 20-pin custom plastic header (white) with locking latches
Wire Type: Flat ribbon cable (red conductors + gray insulating film)
Conductor Count: 20 conductors
Wire Gauge: 28 AWG tinned copper stranded wire
Insulation Material: PVC (flame retardant, temperature rating: 105°C)
Cable Length: Customizable (standard options: 0.5m / 1.0m / 1.5m / 2.0m; model K-20-009 shown)
Connector Material: High-temperature resistant plastic housing, gold-plated contacts for reliable signal transmission
Pitch: 1.27mm (standard IDC ribbon pitch)
Voltage Rating: 300V
Current Rating: Up to 1A per conductor
Marking: Customizable label (e.g., K-20-009) for part identification and traceability
Connector Type: 20-pin IDC (Insulation Displacement Connector) male (black) to 20-pin custom plastic header (white) with locking latches
Wire Type: Flat ribbon cable (red conductors + gray insulating film)
Conductor Count: 20 conductors
Wire Gauge: 28 AWG tinned copper stranded wire
Insulation Material: PVC (flame retardant, temperature rating: 105°C)
Cable Length: Customizable (standard options: 0.5m / 1.0m / 1.5m / 2.0m; model K-20-009 shown)
Connector Material: High-temperature resistant plastic housing, gold-plated contacts for reliable signal transmission
Pitch: 1.27mm (standard IDC ribbon pitch)
Voltage Rating: 300V
Current Rating: Up to 1A per conductor
Marking: Customizable label (e.g., K-20-009) for part identification and traceability
More Details
Key Features
- Flat Ribbon Design: Low-profile, flexible flat cable saves space in tight enclosures and simplifies cable routing in stacked equipment.
- IDC Termination: Insulation displacement connectors ensure fast, consistent, and reliable terminations without stripping wires, reducing assembly time and errors.
- Secure Locking: White header with integrated locking latches prevents accidental disconnection in vibration-prone environments.
- Color-Coded Conductors: Red conductors with gray film enable easy pin identification and alignment during installation and troubleshooting.
- Customizable: Available in custom lengths, pin counts, connector types, and labeling to match specific device requirements.
Application Scope
- Industrial Control: Connects PLCs, I/O modules, and control panels for signal transmission in automation systems.
- Printing & Packaging Machinery: Used in printers, plotters, and packaging equipment to link control boards to sensor/actuator arrays.
- Automotive Electronics: Integrates into vehicle interior control modules and infotainment systems for low-current signal communication.
- Test & Measurement: Deployed in data loggers, oscilloscopes, and test fixtures for reliable signal routing between test points and main units.
- Consumer Electronics: Applied in home appliances, gaming devices, and audio/video equipment for internal inter-board connections.
