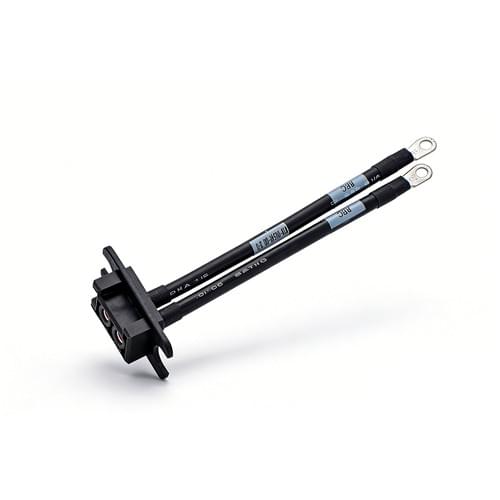

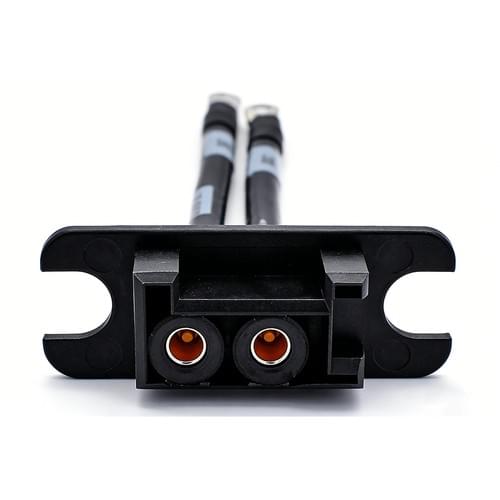

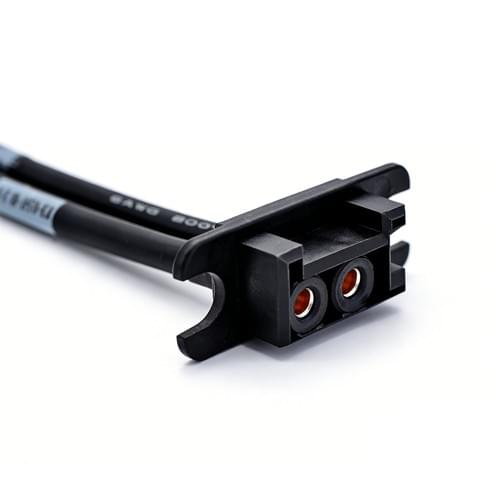

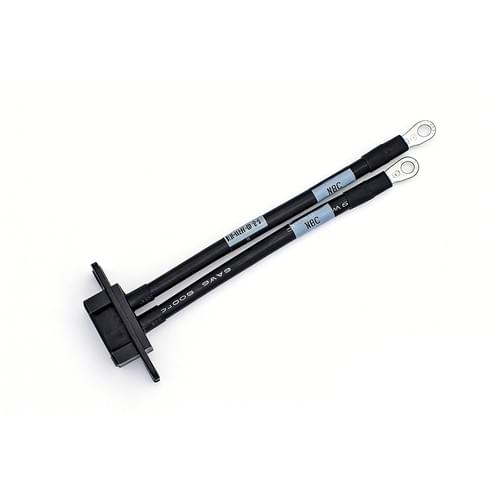

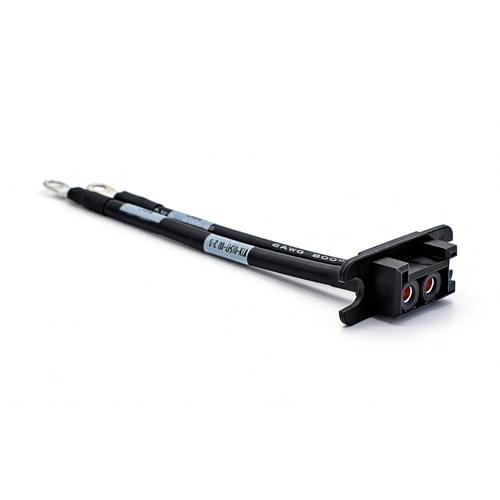

2-Position High-Current Panel Mount Connector Cable Assembly with Ring Terminals
Detailed Parameters
Connector System: 2-position heavy-duty power connector (panel-mount receptacle) with matching cable plug
Conductor Count: 2 conductors (positive + negative, color-coding convention: black = negative/ground, red = positive; included with black cables)
Wire Gauge: 6 AWG (American Wire Gauge) tinned copper stranded wire (high-current rated)
Custom options: 4 AWG / 8 AWG available upon request
Insulation Material: Heat-resistant XLPE/PVC blend (flame retardant, temperature rating: 125°C)
Markings: Printed text on cable insulation indicating AWG, temperature rating (200°C reference), and part number for traceability
Terminals: Tin-plated copper ring terminals (lug type) for secure bolt-on connection to bus bars, battery posts, or chassis
Cable Length: Customizable (standard options: 15cm / 30cm / 50cm; pictured length as shown)
Voltage Rating: 600V DC (high-voltage DC power applications)
Current Rating: Up to 80A per conductor (6 AWG rating; 4 AWG: ~100A, 8 AWG: ~60A)
Connector Material: High-strength thermoplastic housing (UL94 V-0 flame retardant) with silver-plated copper contacts for low resistance and corrosion resistance
Mounting: Flanged panel mount design wi
Connector System: 2-position heavy-duty power connector (panel-mount receptacle) with matching cable plug
Conductor Count: 2 conductors (positive + negative, color-coding convention: black = negative/ground, red = positive; included with black cables)
Wire Gauge: 6 AWG (American Wire Gauge) tinned copper stranded wire (high-current rated)
Custom options: 4 AWG / 8 AWG available upon request
Insulation Material: Heat-resistant XLPE/PVC blend (flame retardant, temperature rating: 125°C)
Markings: Printed text on cable insulation indicating AWG, temperature rating (200°C reference), and part number for traceability
Terminals: Tin-plated copper ring terminals (lug type) for secure bolt-on connection to bus bars, battery posts, or chassis
Cable Length: Customizable (standard options: 15cm / 30cm / 50cm; pictured length as shown)
Voltage Rating: 600V DC (high-voltage DC power applications)
Current Rating: Up to 80A per conductor (6 AWG rating; 4 AWG: ~100A, 8 AWG: ~60A)
Connector Material: High-strength thermoplastic housing (UL94 V-0 flame retardant) with silver-plated copper contacts for low resistance and corrosion resistance
Mounting: Flanged panel mount design wi
More Details
Key Features
- High-Current Capacity: Engineered for reliable power delivery in high-draw applications, minimizing voltage drop and heat loss.
- Secure Panel Integration: Flanged receptacle allows permanent mounting in equipment casings, with cable plugs for tool-free connection/disconnection.
- Robust Termination: Tin-plated ring terminals provide a stable, low-resistance connection to metal components, preventing loosening under vibration.
- Thermal & Chemical Resistance: High-temperature insulation withstands extreme heat and exposure to oils/chemicals, suitable for industrial and automotive environments.
- Color-Coded & Labeled: Clear markings on cables and connector ensure correct polarity installation, reducing wiring errors and safety risks.
Application Scope
- Battery Systems: Electric vehicles (EVs), forklifts, golf carts, marine batteries, and battery energy storage systems (BESS).
- Industrial Machinery: Power connections for CNC machines, industrial inverters, servo drives, and large motor controls.
- Renewable Energy: Solar panel array interconnects, wind turbine power links, and off-grid power systems.
- Automotive & RVs: RV battery cables, truck/tractor auxiliary power leads, and off-road vehicle audio/electrical installs.
- Data Centers & Telecom: Server rack power distribution, UPS systems, and high-current grounding links for telecom enclosures.
